Rixson 99-726 Checkmate 99 Series is a Non-Detectored Electromagnetic Holder that is Push Side Mounted.

The 99 Checkmate can be detected for a complete stand-alone installation or non-detected as part of an established building alarm system. The Checkmate 99 can be used with any make or model of door closers (except overhead concealed).

---

Rixson 99-726 Electromagnetic Holder Features

• Surface-mounted
• Single-acting
• Sprayed finishes
• 85 ° - 110 ° hold open
• Push side
• Non-detectors
• Surface or concealed wiring
• Holding force 25-35 lbs. When used in conjunction with the detectors model, the unit must be 24VDC

---

Rixson 99-726 Electromagnetic HolderSpecifications

Application:	Used with independent closers
Handing:	Non-handed

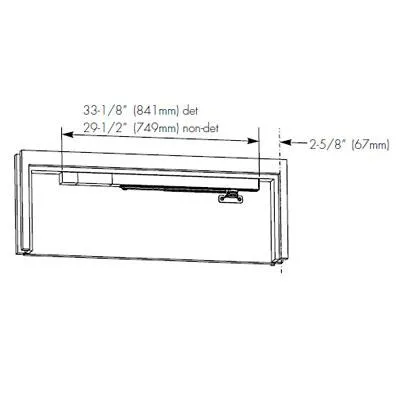

Maximum Door Width:	For doors 2'8" to 4'0" (non-detectored) 3'0" to 4'0" (detectored)
Door Holding Force:	25-35 lbs.
Voltage:	24VAC/DC, 120VAC
Manufacturer:	Rixson

---

Rixson 99-726 Electromagnetic Holder Certifications

ANSI:	C00511/C00521
UL:	UL/ULC Listed
