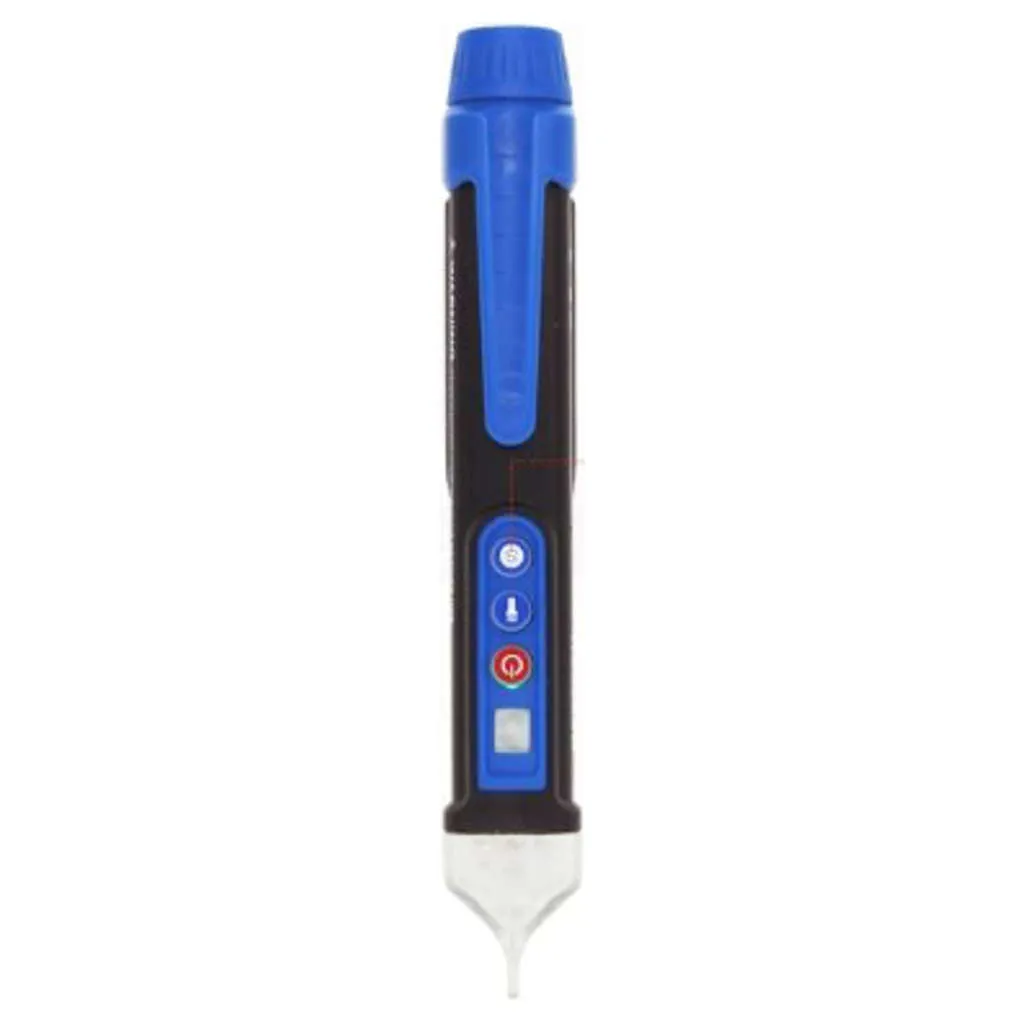

Name: Mextech Voltage Detector EM18C
SKU: 1118438

Product Details ＋

Product Description

It is mainly used for detecting the presence of AC voltage in or around the object or surface and isvery easy to operate

Features
Zero Line /fire Line Judgment
According to signal strength ,the strong signal is the fire line
NCV Sensitivity
Automatically select 2 types of sensitivity (high,low)
NCV Sensitivity Indication Method
The tester uses different alarm sounds of different frequencies and different color LED to indicate different sensitivity of high (red long),and low (green long)

Product Specification

Brand	Mextech
Product Type	Voltage Detector
Product Model	EM18C
AC Voltage	About 12-100V (S button indicator is on ) / About 48-100V (S button indicator is off )
Frequency	50Hz /60Hz
Alarm Mode	Audiable alarm
Flashlight	White LED Lighting
Automatic Shut Down	√
Battery Undervoltage Indication	√
Operating Temperature	0~40 degrees
Storage Temperature	10~50 degrees
Altitude	< 2000m
Security Level	CE CAT.III 1000V/CAT.IV 600V
Power	2×1.5V AAA Battery
Display Size	64 X 35 mm
Including Components	Instruction Manual, One Set Test Leads, 1pc 9V Battery
Dimension (L x W x H)	160 x23 x26
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H	16 x 2.3 x 2.6
Unit of Measurement	1 Piece
Weight	0.15 kg
Generic Type	Voltage Detector
Manufacturer Details	Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India
Packer Details	Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India
Country of Origin	India
