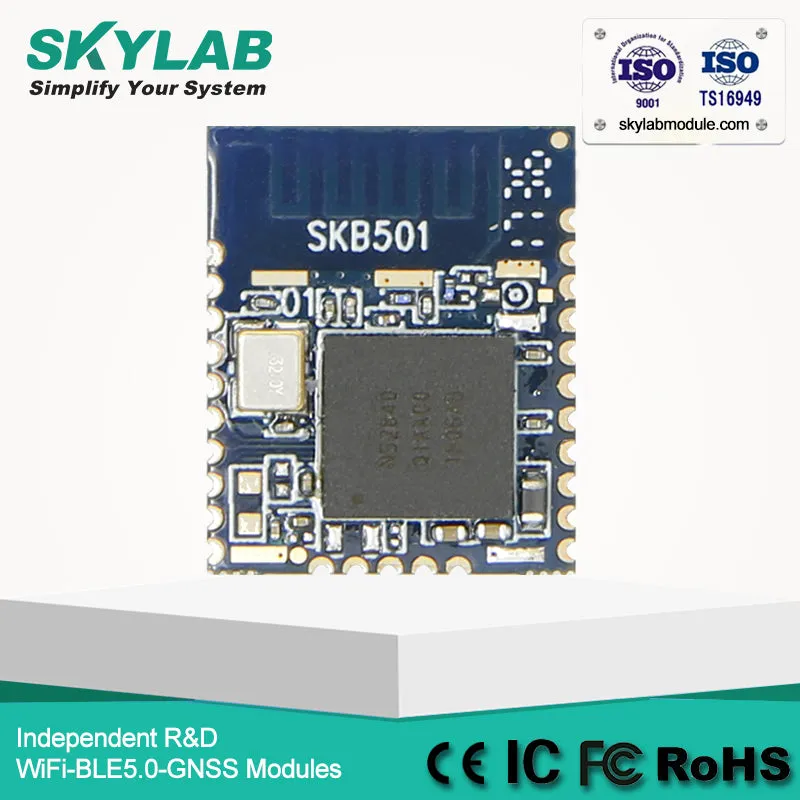

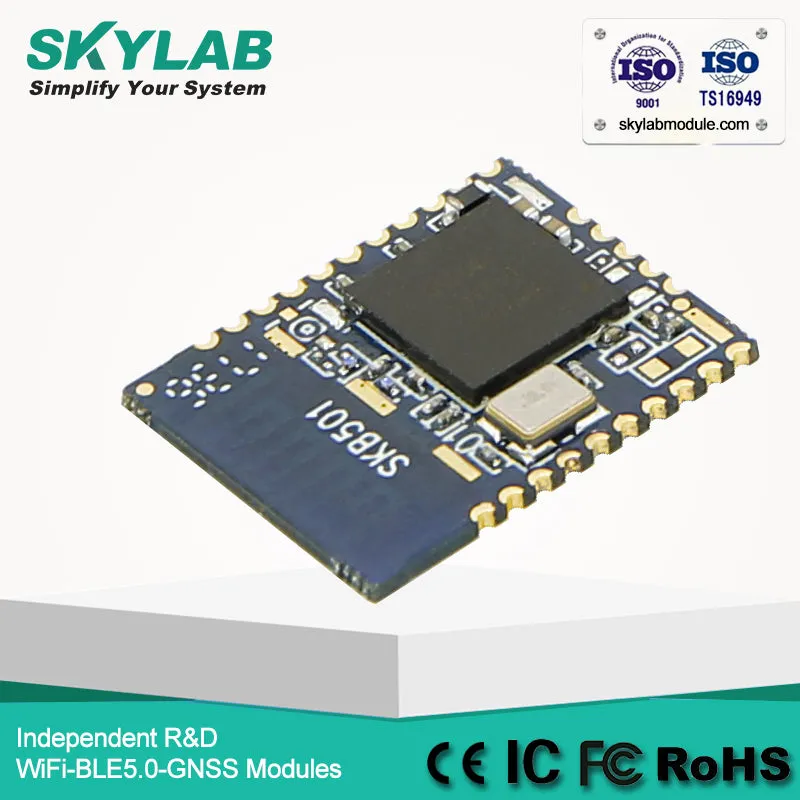

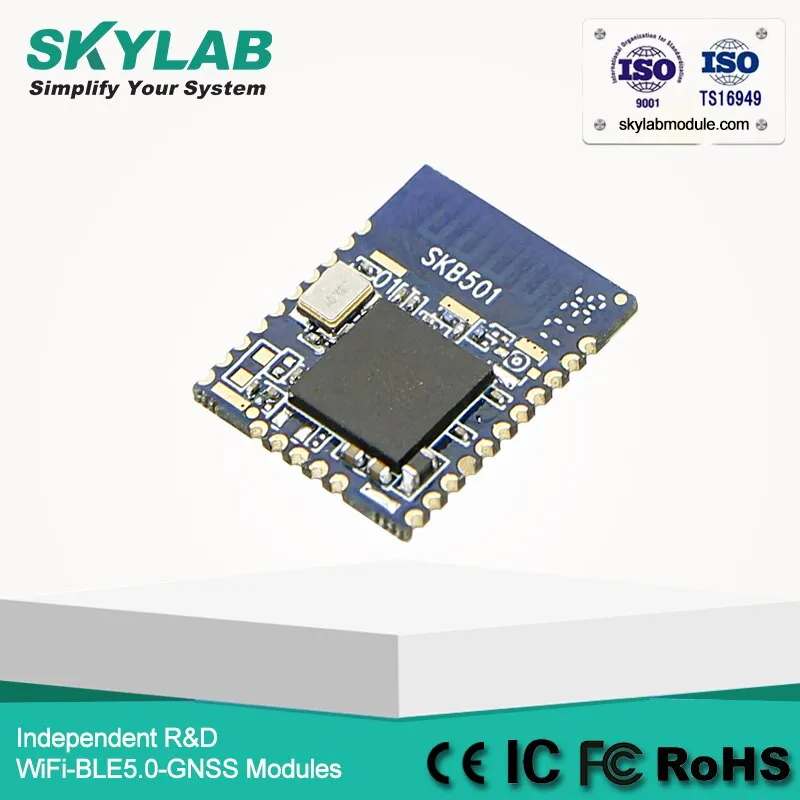

Name: nRF52840 chipset BLE module 5.0
Model No.: SKB501
The SKB501 is an advanced, highly flexible single chip solution for today’s increasingly demanding ULP wireless applications for connected devices on our person, connected living environments and the IoT at large. It is designed ready for the major feature advancements of Bluetooth® 5 and takes advantage of Bluetooth 5’s increased performance capabilities which include long range and high throughput modes. Inherent industry-grade security is essential in today’s applications.
| Hardware Features |
|
| Model |
SKB501 |
| ANTenna Type |
PCB Antenna or IPEX connector |
| Chipset Solution |
nRF52840 |
| Voltage |
1.7V~3.6V |

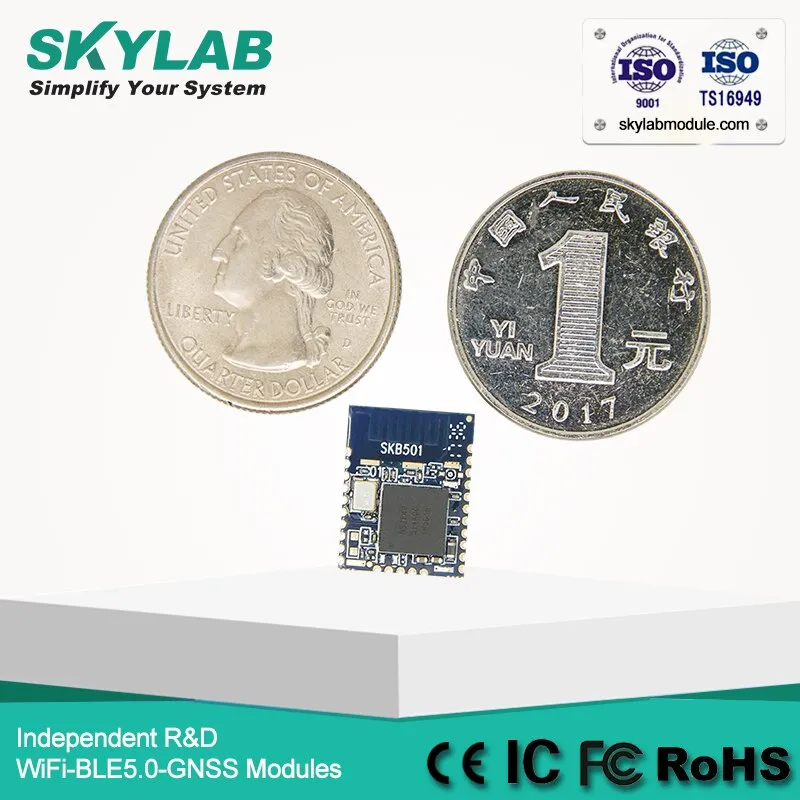

| Dimension(L×W×H) |
17.4×13.7×1.9 mm |
| Wireless Features |
|
| Wireless Standards |
Bluetooth ® 5.0,ANT
|
| Frequency Range |
2400MHz---2483.5MHz |
| Data Rates |
Uncoded:1Mbps/2Mbps,Coded:125kbps(S=8)/500kbps(S=2) |
| Modulation Technique |
GFSK Modulation(Bluetooth ® 4.2) |
| Wireless Security |
AES HW Encryption |
| Transmit Power |
Tx Power -20 to 8 dBm in 4 dB Steps
|
| Work Mode |
Central/Peripheral |
| Others |
|
| Certification |
RoHS |
| Environment |
Operating Temperature: -40℃~85℃ |
| Storage Temperature: -40℃~125℃ |
|
| Operating Humidity: 10%~90% Non-condensing |
|
| Storage Humidity: 5%~90% Non-condensing |
|
Features
1.Bluetooth 5 ready multi-protocol radio
2.Bluetooth 5 datarate support: 2Mbs, 1Mbs, 500Kbs, 125Kbs
3.Support ANT Protocol
4.32-bit ARM Cortex-M4F @ 64MHz
5.Up to 111 dB link budget for Bluetooth long range mode
6.NFC-A on-chip
7.Programmable output power from 8dBm to -20dBm
8.-96dBm Sensitivity for Bluetooth low energy
9.RSSI
