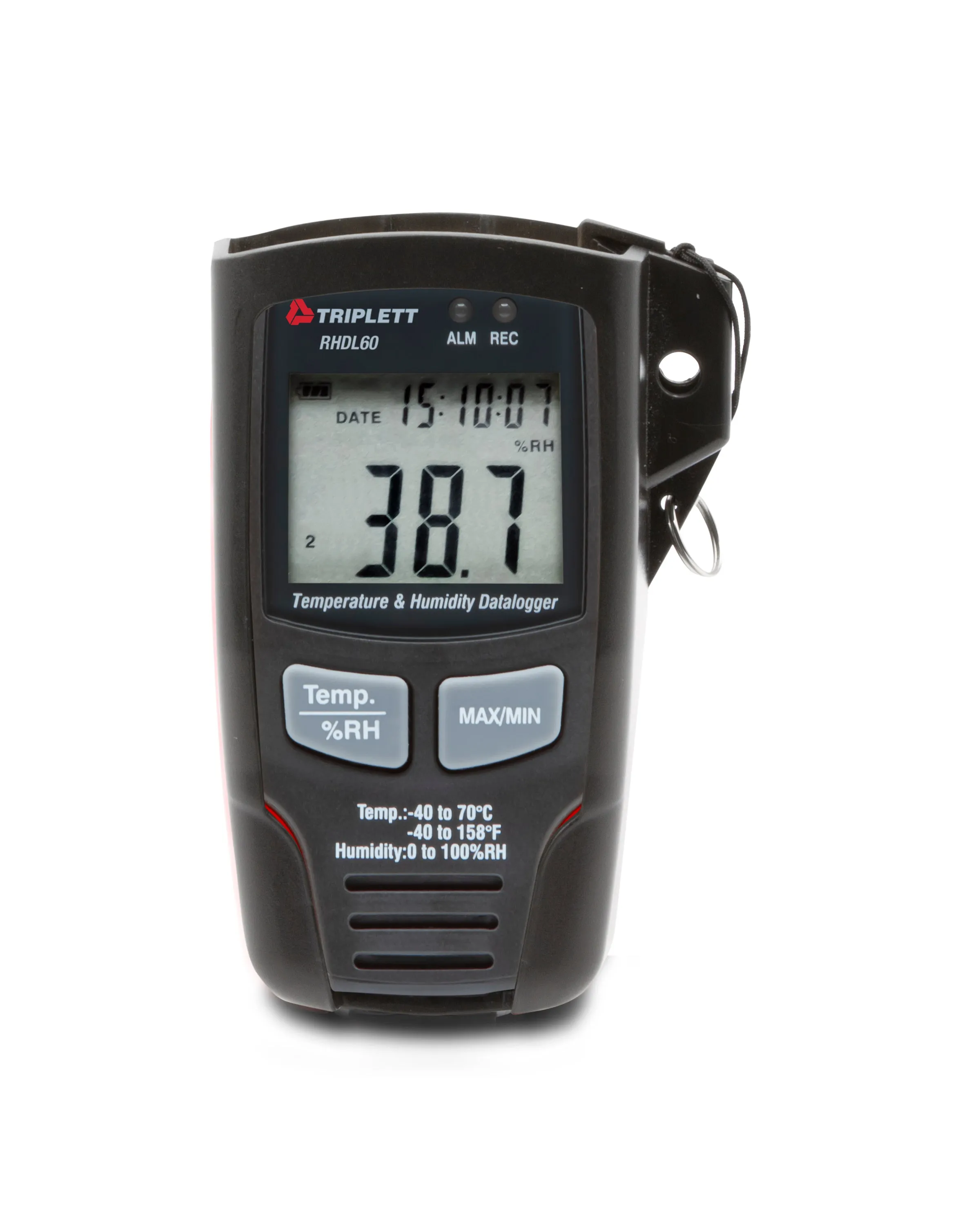

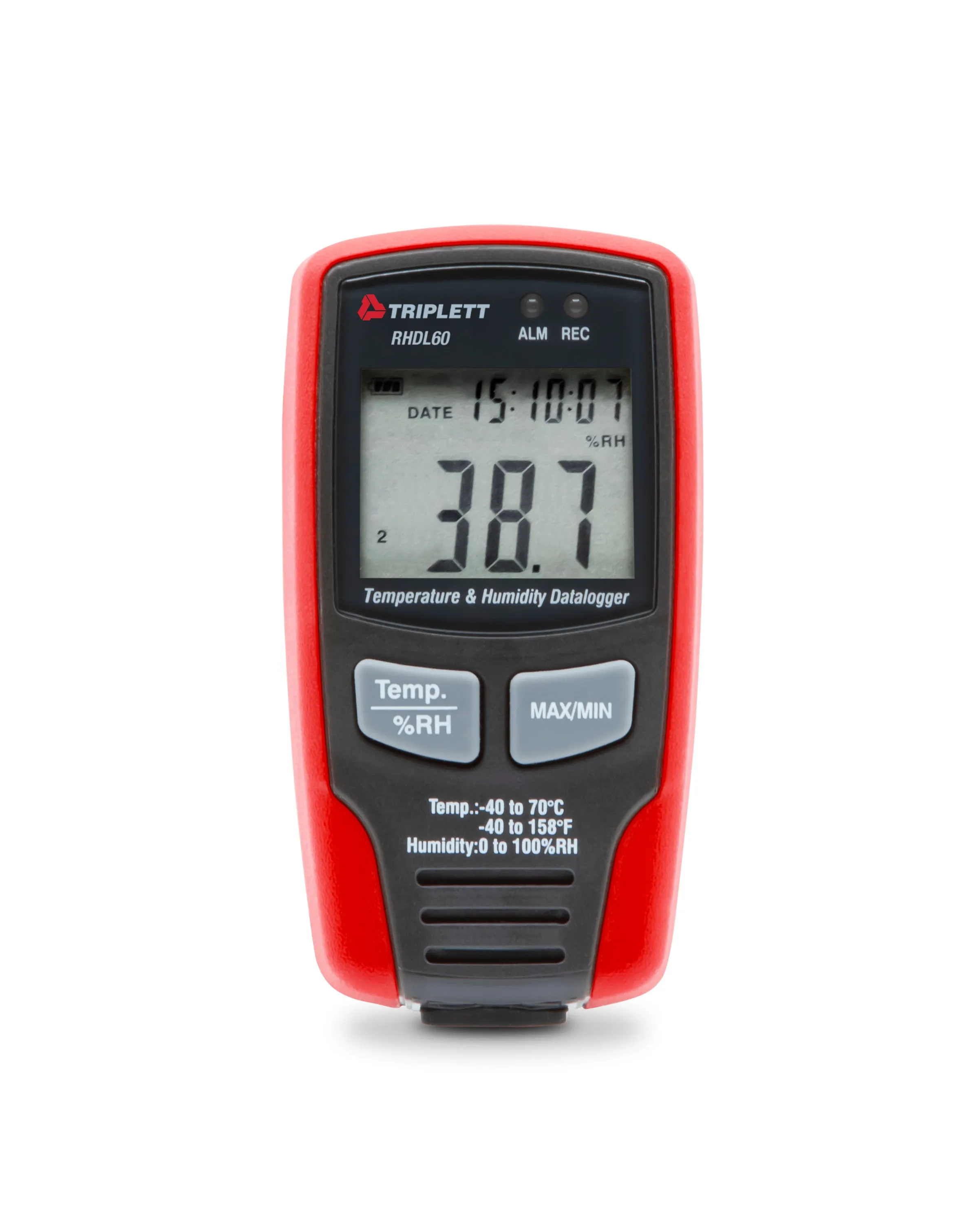

The Triplett RHDL60 Temperature and Humidity Datalogger can record up to 16,000 readings each for Temperature and Humidity in virtually any indoor setting.
DESCRIPTION
The Triplett RHDL60 Temperature and Humidity Datalogger can record up to 16,000 readings each for Temperature and Humidity in virtually any indoor setting. This can elimate the manual recording of data in labs, greenhouses, warehouses, HVAC systems, storage areas, office space, classrooms, museums, and other place where temperature and humidity have to me monitored. It features a user adjustable sampling rate from 1 seconds to 24 hours and high/low alarms with visual alert when settings are exceeded. Min/Max records the highest and lowest readings with time and date stamp. The USB interface can be used for transferring recorded data to your PC. Includes 3.6V Lithium battery, USB cable, mounting bracket with combination lock, and software CD. 1 year warranty.

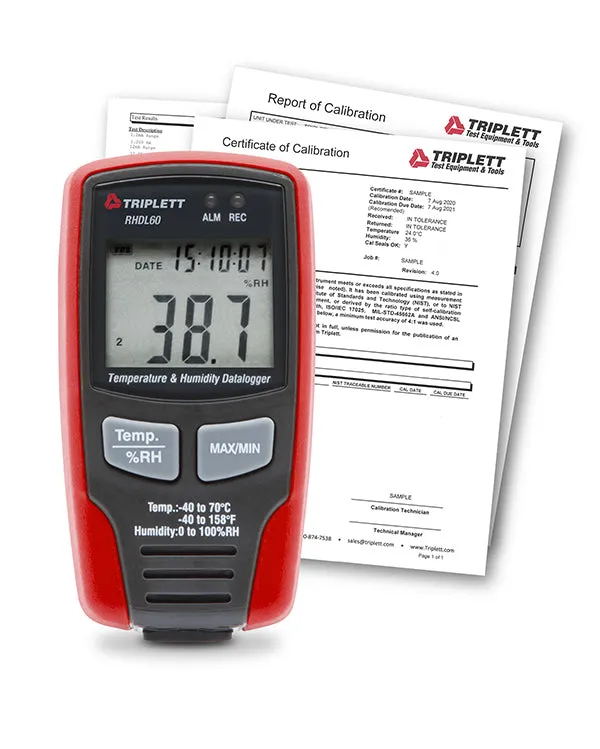

RHDL60-NIST Comes with Certificate of traceability to NIST Standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY:
Features
- Record up to 16,000 readings each for Temperature and Humidity
- User adjustable sampling rate from 1 second to 24 hours
- High/Low Alarms with visual alert when settings are exceeded
- Min/Max records highest and lowest readings with date and time
- USB interface for transferring recorded data to your PC
- Includes 3.6V Lithium battery, USB cable, mounting bracket with combination lock, and software CD
Specifications
| RHDL60 | |
| Temperature | -40 to 158°F (-40 to 70°C) |
| Accuracy | ±1.8°F/1.0°C ( 14 to 104°F/-10 to 40°C) ±3.6°F/2.0°C (all other ranges) |
| Relative Humidity | 0 to 100%RH |
| Accuracy | ±3.0%RH (40 to 60%) ±3.5%RH (20 to 40%/60 to 80%) ±5%RH (0 to 20%/80 to 100%) |
| Resolution | 0.1°F/°C; 0.1%RH |
| Datalogging Points | 16,000 Temperature 16,000 Humidity |
| Sampling Intervals | 1sec to 24hr |
| PC Interface | USB |
| Power | 3.6V Lithium Battery |
| Dimensions | 3.7 x 1.9 x 1.2" (94.4 x 48.9 x 31.2mm) |
| Weight | 3.2oz (90.7g) |
Downloads
FAQs
-
Q. We needed to change the settings so that the unit shows Fahrenheit instead of Celsius - I downloaded the RHDL60 software. Is there a trick to connecting the RHDL60?
A. In addition to the main “Setup.exe” file there is also a USB driver file called “USB_Driver_Setup.bat” that must be installed for the USB function to work. This file is located in the “USB Drivers” section of the software download.
