Features

• 14° lens with 464 x 348 resolution
• Object temperature range: -4 to 2732°F
• 1 x 6 continuous zoom
• Reduce strain of full-day inspections with 180° rotating optical block for imaging targets overhead or below
• Scan large areas from safe distances, delivering 161,472 non-contact temperature measurement points
• Share lenses (wide angle to telephoto) across your fleet of cameras, thanks to AutoCal optics
• Ensure crisp thermal imagery and spot-on temperature readings every time with laser-assisted autofocus
• Get image clarity from FLIR Vision Processing, with MSX, UltraMax, and proprietary adaptive filtering features
• Determine accessibility of components for repair with one touch by activating on-screen laser distance measurement
• See problems and make decisions easily, thanks to scratch-resistant 4 in. LCD display
• Quickly access menus, folders, and settings using intuitive controls, including rapid-response touchscreen and two programmable buttons
• Allow customers to observe critical findings in real time through Wi-Fi streaming to FLIR Tools app
• Optimize workflows with streamlined reporting features, such as built-in voice annotation, text comments with auto-fill, and image sketch
• Prepare precise documentation with embedded GPS locations, as well as measurement data from METERLiNK-enabled FLIR clamps and multimeters
• Laser distance and on-screen area measurement
• Customizable work folders
• Intelligent, interchangeable AutoCal lenses

Accessories (Included)

• 1 - 14° Lens
• 2 - Batteries
• 1 - Battery Charger
• 1 - Hand Strap
• 1 - Hard Transport Case
• 1 - Lanyard
• 1 - Front Lens Cap
• 1 - Power Supplies
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Cable
• 1 - USB Type-C to USB Type-C Cable
• 1 - User Manual

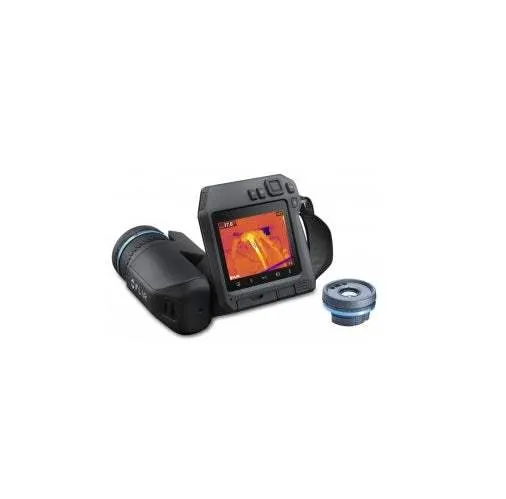

The FLIR T54014 Thermal Imaging Camera with MSX and UltraMax Technologies, 14° Lens, 464 x 348, -4 to 2732 °F, 30 Hz is designed to support advanced thermographers and IR service consultants in the power generation, electrical distribution, and manufacturing industries, by focusing on resolution, speed, and ergonomics. With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, the T540-14 offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access.
