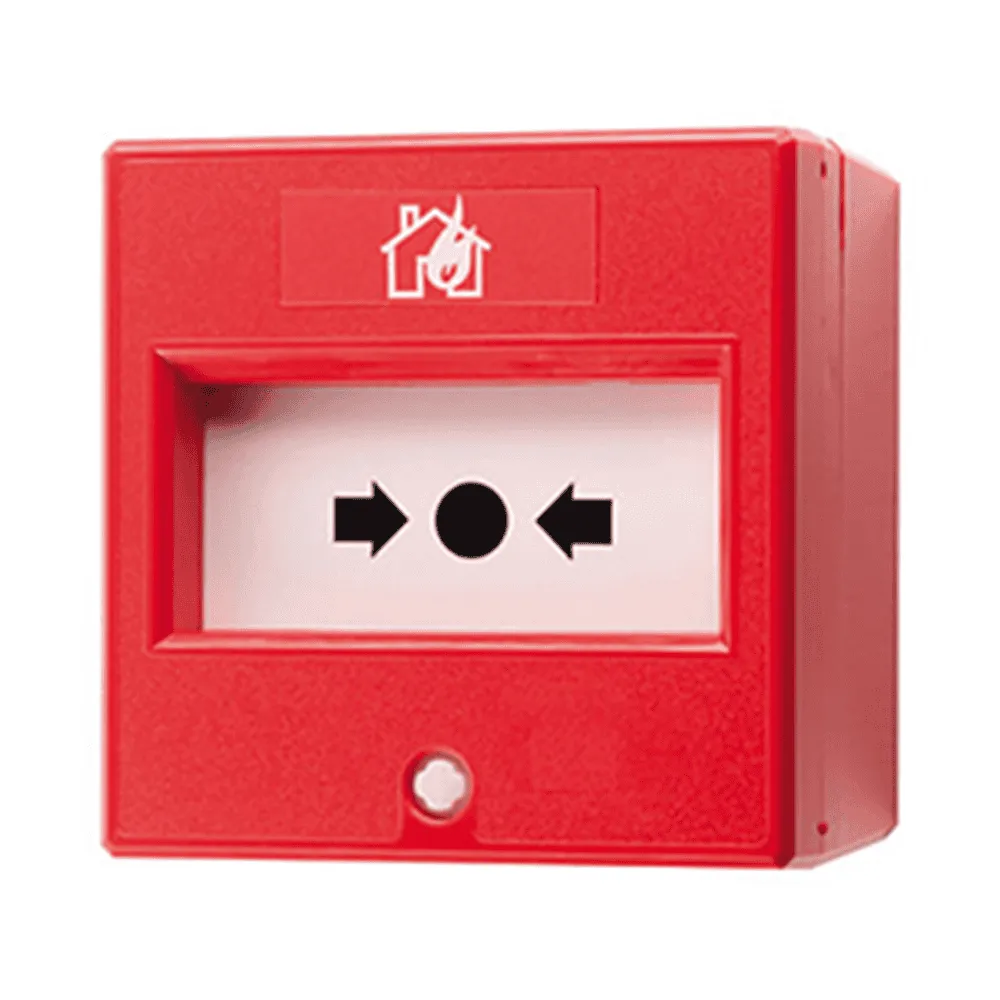

This red surface call point is a robust, resettable device designed for reliable operation. Constructed to survive in a diverse range of temperatures from -10 to 60 degrees celsius. With a nominal operating voltage of 24VDC, it weighs a mere 150 grams and offers superior building flexibility due to its high humidity resistance.

Dimensions & Attributes

• Dimensions 90mm x 57mm x 90mm
• Material ABS; Red
• Type of the frangible element A
• Wire Gauge 0.4mm - 2.0mm TWIN
• Weight 150g
• Warranty 3 Years
• Power Operating Voltage 9 - 30 VDC
• Nominal Operating Voltage 24 VDC
• Current Consumption in alarm state 38mA/24V
• Environment Ingress Protection IP40
• Relative Humidity Resistance (93±3)% @40°C
• Operating Temperature -10°C to 60°C
