Product Details
＋

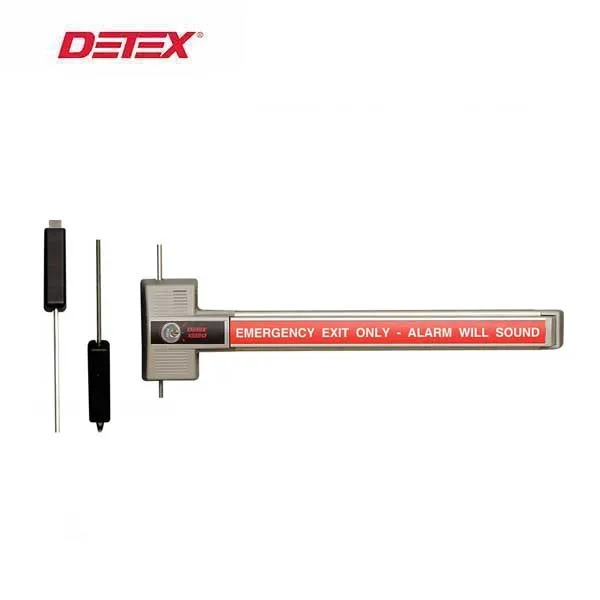

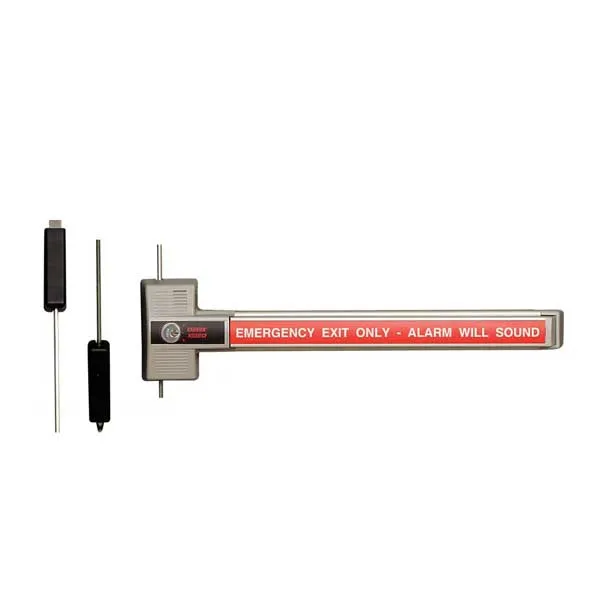

The DTX-ECL-230X-TB is a code compliant, battery alarmed, rugged 2-point panic device with a photo-luminescent sign providing maximum security and a 100-decibel alarm for secondary exits.
9-volt battery included
- 2-point, 3/4" throw top and bottom locks with just over 5/8" engagement with the strike
- Corrosion resistant alloy lock body
- 100 decibel alarm, powered by 9-volt battery
- CL - Cover Lock
- Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
- Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
Specifications:
| Door Types | Wood, Hollow Metal - Double Door Requirements |
Minimum Standard Door Width |
36" - 48" |
| Screws |
Machine & Sheet metal |
| Battery |
9VDC |
| Application | Providing maxiumum security and a 100 decibel alarm for seconddary exits |
Introduction:
Installation:
Downloads
