Product Details
＋

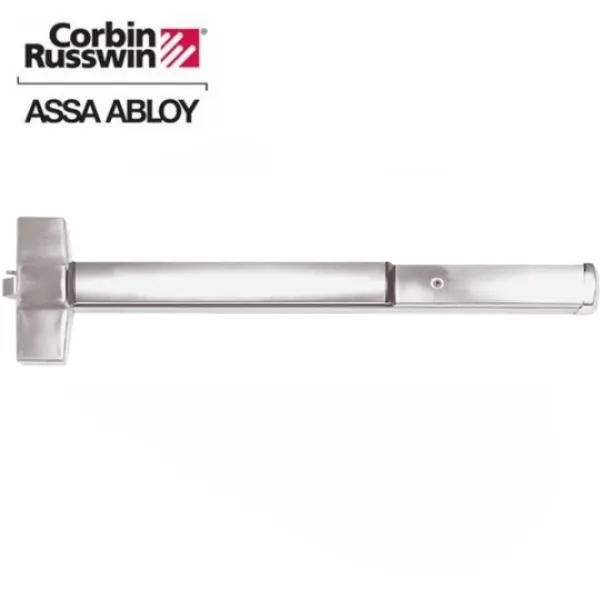

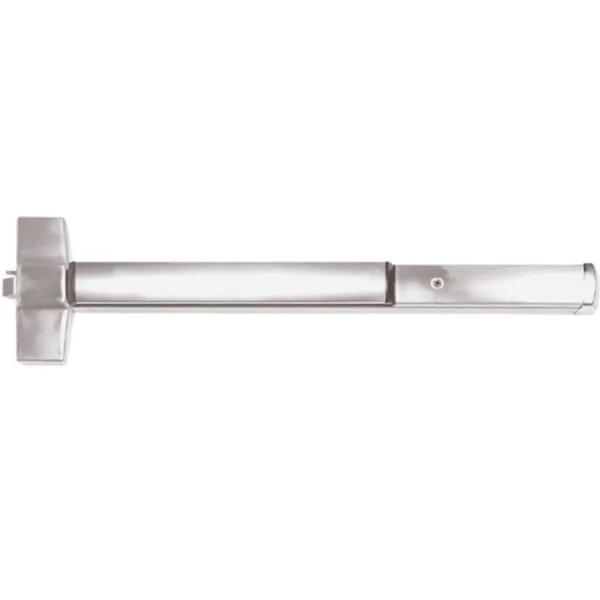

The Corbin Russwin ED5200-630 Series Pushpad Rim Exit Device is designed to meet life safety and security requirements. The ED5200 series exit device is ideal for frequent-use applications such as schools, factories, hotels, theaters, offices, retail complexes, and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5200 exit device series is certified to the ANSI A156.3, Type 1, Grade 1.
Specifications:
| Handing | Non-Handed - Completely Reversible |
| Cylinder | Not Included |
| Bar Length | Standard - 36" (914mm) bar fits 30"-36" (762mm - 914mm) door |
| Door Thickness | 1-3/4" (44mm) standard |
| Projection | 3-1/4" (83mm) active, 2-3/4" (70mm) dogged |
| Dogging | Standard on panic devices; single-point 1/4 turn hex key dogging |
| Fasteners | Machine screws and wood door fasteners are included |
| Strike | Surface-mounted 3/8" (10mm) diameter roller strike |
| Stile | Minimum width 4-1/2" (114mm) |
| Latchbolt | 3/4" (19mm) throw, stainless steel pullman type with stainless steel deadlocking latch |
| Warranty | 5-Years Limited Manufacturer's warranty |
