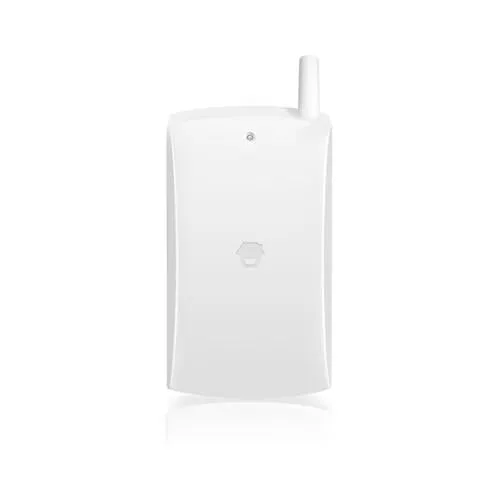

Glass Break Detector for Chuango G5W alarm system.

The glass break detector is a device that responds to the sound of glass breaking. It collects environmental sounds using a high-accuracy microphone to analyze frequency information. The glass break detectors are used in homes, shops, hotels and banks.

Glass break sensors are used to detect when a window is smashed or shattered. The G5-126 can cover an area of up to 6 x 6 meters so they can protect a number of windows at once.

This glass break sensor is wireless. it does require to be plugged into a mains power point and it runs on 12volt DC (adaptor supplied). The sensitivity can also be adjusted to accommodate noisy locations.

Features:

• Power Supply: DC 12V 500mA
• Static Current: 2.6mA
• Alarm Current: 28mA
• Detection Distance: Max 7m
• Transmitting Distance: 100m (open area)
• Radio Frequency: 315MHz or 433.92MHz
• Housing Material: ABS plastic
