Name: Cambo Wide-RS 90mm f/5.6 HR Digaron-SW Short Barrel Lenspanel Spacer ( in Aperture Only / X-Shutter / Tilt Swing )
SKU: 1018911

Product Details ＋

**Please allow 2-4 weeks for delivery

Please Contact Your CI Salesman for 20% Down Payment Option

Or Call 877-217-9870

Aperture Only (WRA-2090)

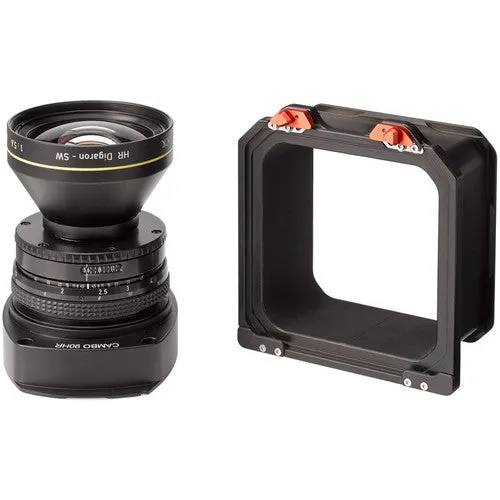

The WRA-2090 Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5.6/90 HR Digaron-SW lens with Aperture Only mounted in a helical focussing mount.

This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.

This combination allows for optimised shift without vignetting from the lensbarrel.

The WRA-2090 fits to all Cambo Wide cameras with SLW-adapters.

Shortest focal distance to object: 1,25 mtr

Image circle of lens at f/11: 120mm

Optical Movements:

CCD size 37x37mm: 38/38mm

CCD size 33x44mm: 39/35mm

CCD size 36x48mm: 37/33mm

CCD size 37x49mm: 36/32mm

CCD size 40x54mm: 33/29mm

CCD size 36x56mm: 35/29mm

Please note that some optical movements are larger than achievable due to mechanical limitation.

Camera Movements:

WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm

WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm

Tilt / Swing Aperture Only (WTSA-891)

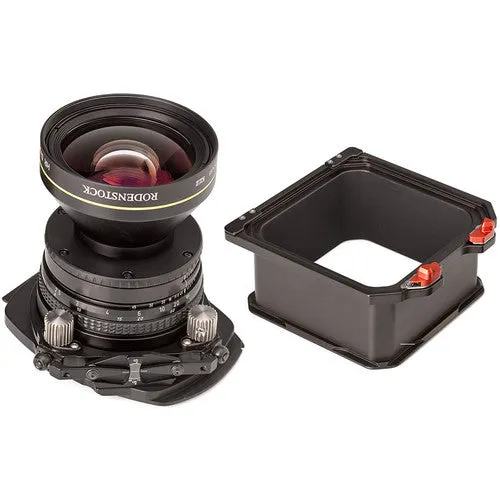

Dedicated to use with the included Rodenstock HR Digaron-SW 90mm f/5.6 lens, the WTSA-891 Tilt-Swing Lens Panel facilitates the attachment of the lens to Cambo WDS- and WRS-series cameras along with digital backs featuring an electronic shutter function. This lens panel has a unique split back, short barrel design to prevent vignetting, and the lens has also been mounted in a helical focusing system for working with subjects as close as 4.1' away. This design permits its use on technical view cameras in conjunction with a variety of perspective control movements and various sized digital backs. Additionally, this tilt-swing panel incorporates geared tilt and swing mechanisms to offer /- 5° of movement in both directions for increased control over perspective distortions and focus.

Lens Panel Movements:

The panel incorporates knob-driven, geared mechanisms for /-5° of both tilt and swing movements. Both of these movements can be controlled independently, or together, and the center rotation is close to the optical axis in order to avoid unintentional image shifts. On the side of the panel are index scales for repeatable performance along with a hard zero stop for quickly returning to parallel positioning.

Optical Movements:
37 x 37mm sensor size: 33mm/33mm
33 x 44mm sensor size: 29mm/26mm
36 x 48mm sensor size: 26mm/23mm
37 x 49mm sensor size: 25mm/22mm
40 x 54mm sensor size: 23mm/21mm
36 x 56mm sensor size: 25mm/21mm

Camera Movements:
WRS: 34mm up, 26mm down, 20mm left and right
WDS: 25mm up, 15mm down, 20mm left and right

with Phase One X-Shutter (WRX-90)

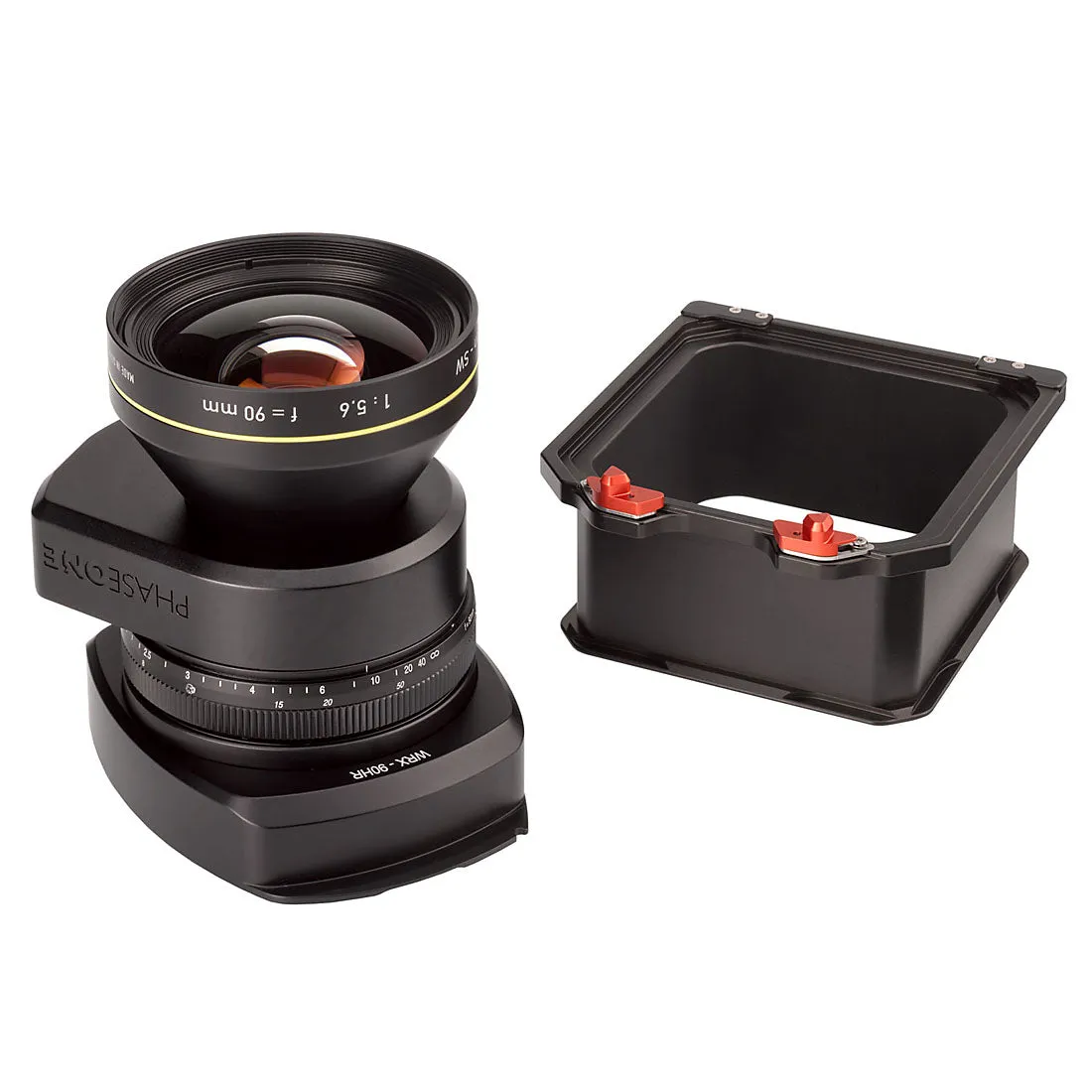

The WRX-90 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5.6/90 HR Digaron-SW lens with Phase One X-Shutter mounted in a helical focussing mount.

This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.

This combination allows for optimised shift without vignetting from the lensbarrel.

The WRX-90 fits to all Cambo Wide cameras with SLW-adapters.

In case the WRX-90 is being used on a XT body, the rear spacer can be replaced with the front spacer WRS-1049.

Shortest focal distance to object: 1,25 mtr

Image circle of lens at f/11: 120mm

Optical Movements:

CCD size 37x37mm: 38/38mm

CCD size 33x44mm: 39/35mm

CCD size 36x48mm: 37/33mm

CCD size 37x49mm: 36/32mm

CCD size 40x54mm: 33/29mm

CCD size 36x56mm: 35/29mm

Please note that some optical movements are larger than achievable due to mechanical limitation.

Camera Movements:

WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm

WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm

Tilt / Swing Phase One X-Shutter (WTSX-90)

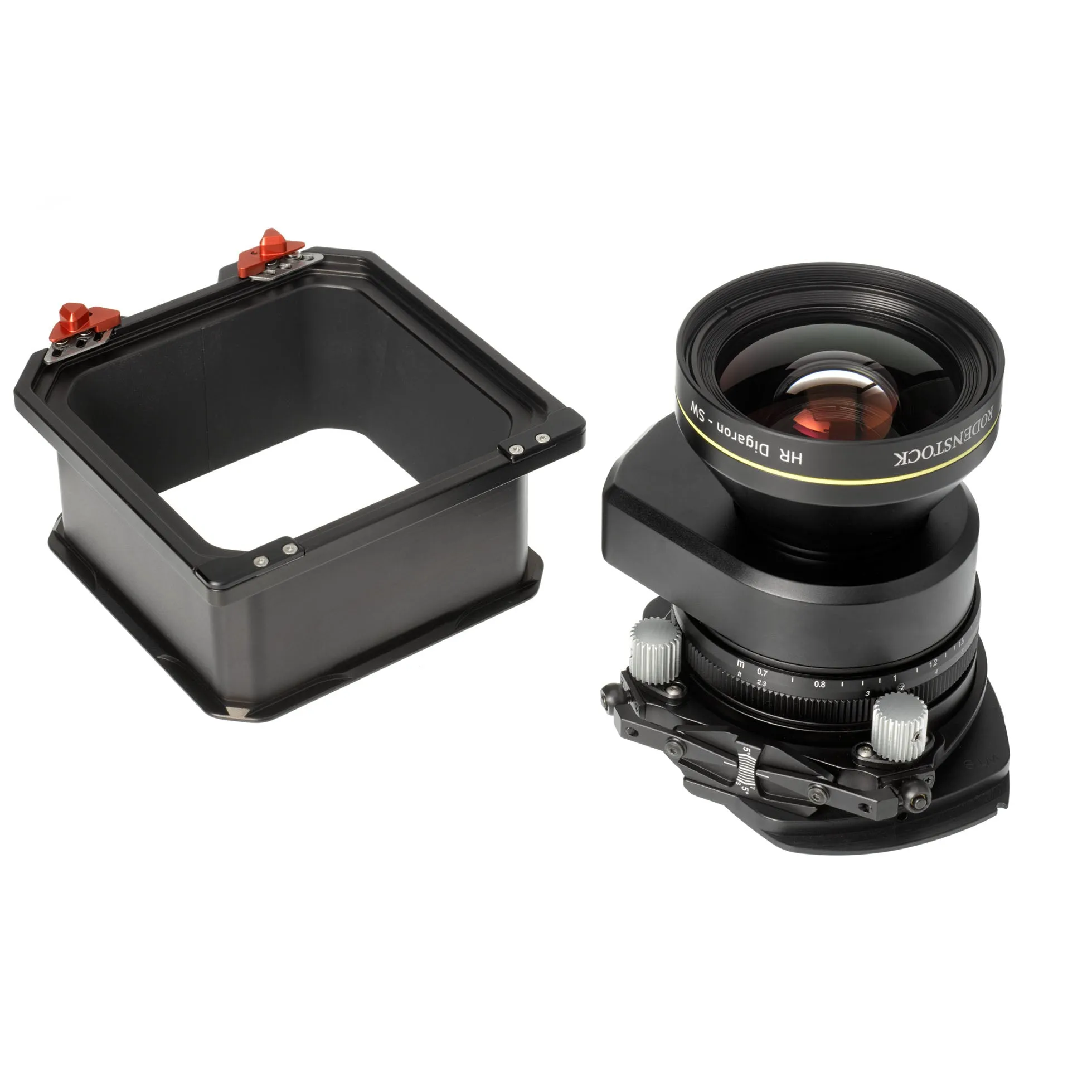

The WTSX-90 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5,6/90 HR-SW Digaron lens with Phase One X-Shutter mounted in a helical focussing mount.

This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.

This combination allows for optimised shift without vignetting from the lensbarrel.

This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs upto 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination.

The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.

The WTSE-890 fits to all Cambo Wide cameras with SLW-adapters.

In case the WRX-90 is being used on a Phase One XT body, the rear spacer can be replaced with the front spacer WRS-1049.

Shortest focal distance to object: 1,25 mtr

Image circle of lens at f/11: 120mm

Optical Movements:

CCD size 37x37mm: 38/38mm

CCD size 33x44mm: 39/35mm

CCD size 36x48mm: 37/33mm

CCD size 37x49mm: 36/32mm

CCD size 40x54mm: 33/29mm

CCD size 36x56mm: 35/29mm
