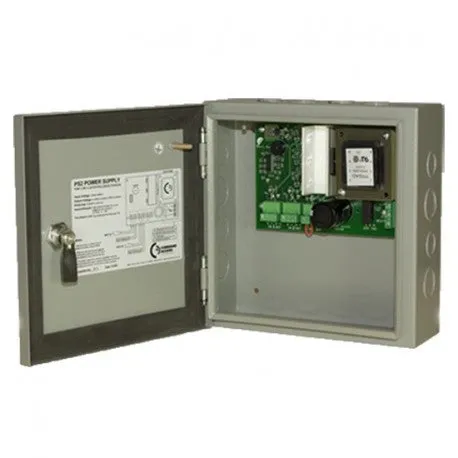

DETAILS: CAL-ROYAL CRPS220 POWER SUPPLIES FOR ELECTRIFIED EXIT DEVICE

The CRPS2 Series power supplies are high quality, cost effective solution for powering two electric latch-retracting exit devices. These power supplies provide the necessary surge current that most latch-retracting exit devices require. The CRPS2 Series offers features found on power supplies costing much more; and the solid-state design and careful attention to detail make the CRPS2 Series ideal choice for the discerning user who requires a power supply that can offer years of trouble-free operation.

Features

Delivers the necessary in-rush current to power two latch pullback exit devices.
Two independent inputs/outputs
Solid-state design eliminates mechanical problems associated with relays
Thermal overload sensing reduces risk of failure due to overheating
Fire alarm disconnect link
Inputs triggered by dry contact
Intelligent short circuit detection, detects shorts much faster than fuses and isolates the short to the individual output
Removable Euro-style terminal blocks allow for easy installation
UL Pending at time of print
No hassle 3-Year Warranty

Additional Features (CRPS2BB Only)

Efficient battery backup/charging circuitry with zero voltage drop at power loss
Solid state reverse polarity protection for battery connections
Audible alert when sensing AC power failure & low battery (batteries not included)
Output Voltage — 24 VDC unregulated @ 2.3A
Enclosure dimensions: 12.5" × 15" × 4"
Input Voltage — 120 VAC
Temperature Range — 0 to 120 F
1 Solid-State input/output (input triggered by dry contact)
LEDs — Red = Power indicator GREEN = Channel on

Specifications CRPS2 only

Enclosure dimensions: 10" × 10" × 4" ****CRPS2 only
Output Voltage: 24 VDC unregulated

AVAILABLE MODEL NUMBERS AND COMBINATIONS

Model/SKU	Attributes
CRPS2CRPS2
CRPS2CRPS2BB
