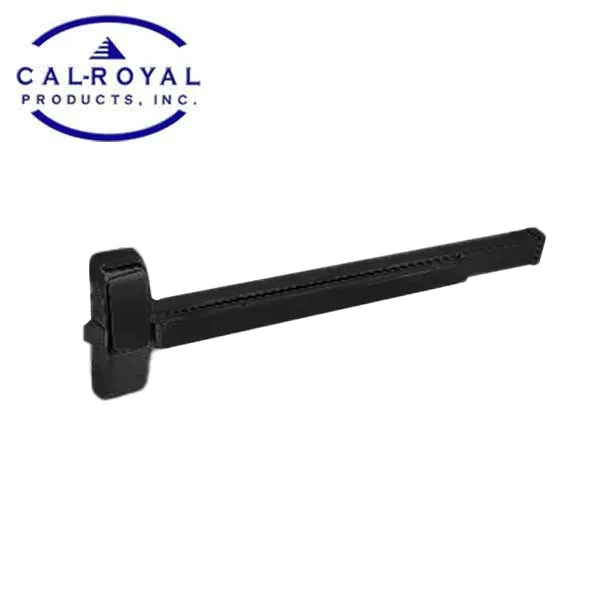

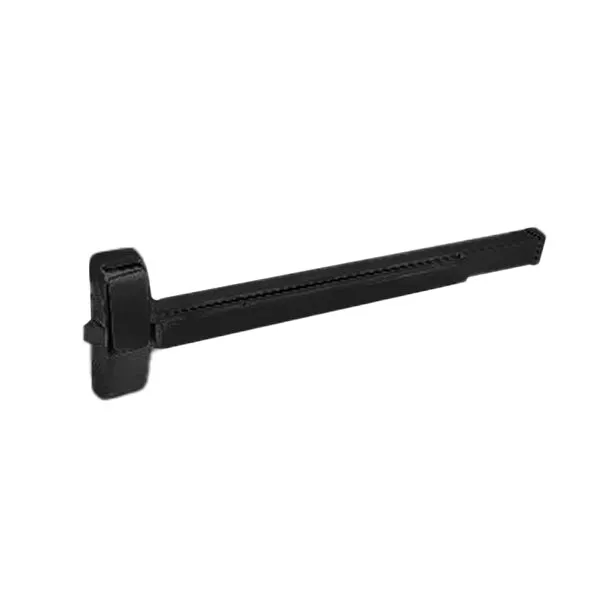

Name: Cal-Royal - A9800EO36 - Rim Exit Device - Matte Black - 36" - Grade 1
SKU: 2018963

Product Details ＋

Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.

Features:

ANSI A156.3, GRADE 1 heavy-duty exit device in surface vertical rod and rim designs.
Retrofits Sargent 8800 Series using 9800 Escutcheon trim
Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
Trims are thru bolted for additional security.
Conforms & Meets ADA Regulations.
Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
Non-Fire Rated
Uncompromising security and safety in single and double-fire exit doors.
Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.

Specifications:

For Doors	1 ¾" thick standard, optional 2 ¼” thick. 4 ½" minimum stile width for single or double door application using standard 239 strike and pull or lever, thumb piece, and escutcheon trim. 2-3/4" backset.
Chassis	Non-ferrous alloy (Panic Grade)
Cover	Brass, Bronze, or Stainless Steel. Covers stock hollow metal doors with 161 cut out.
Mounting	Furnished with wood and machine screws. Available with thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices.
End Cap	Brass, Bronze, or Stainless Steel construction.
Handing	Non-handed, center hub.
Latch Bolt	Stainless Steel 3/4" throw.
Spring	Stainless Steel throughout.
ANSI Standard	A156.3, Grade 1.
Dogging Feature	Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.
UL and ULC Listed	A9800 Series for panic
