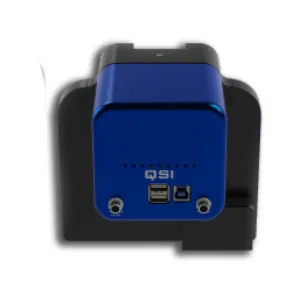

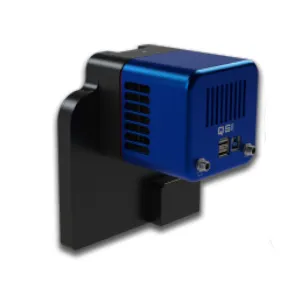

Atik New QSI 726 CMOS Camera
In two decades, much has changed beyond recognition. Sensors are now back-illuminated CMOS with native 16-bit digitisation. QE is an amazing 90% and readout is a speedy 120 million pixels per second over USB3, a performance that once was unimaginable. What is maintained by QSI’s newest cameras is the integrated design, attention to detail, and bulletproof reliability.
In the design of the 700 series we have taken our best technology. Filterwheels are mechanically indexed to ensure the most precise locations and perfect flat fields. The fused silica window is dew resistant and is coated on both sides with high transmission anti-reflective coating to minimise halos. The cameras use a highly efficient 2-stage Peltier cooler that draws less current and delivers more cooling than some other cameras.
About QSI :
QSI cameras are designed in Norwich, UK by a dedicated team having many years of experience in astronomy. Skills include 10-layer high-speed PCB
design and platform-independent software code base. The manufacture takes place in a state-of-the-art facility in Lisbon, PT.
Quality is controlled using an ISO9001:2015 accredited management system. The factory makes extensive use of solar power and takes seriously the potential impact of manufacture on the environment gaining ISO 14001 accreditation.
Technical Specifications
| Model | 760 | 726 |
| Image Sensor | Sony IMX455 mono CMOS sensor | Sony IMX571 mono CMOS sensor |
| Resolution | 9576 x 6380 | 6244 x 4168 |
| Pixel Pitch | 3.76 µm | 3.76 µm |
| Sensor Size | 43.3mm diagonal (36mm x 24mm) | 28.3mm diagonal (23.5mm x 15.7mm) |
| Full Qell | 51,000 e- | 51,000 e |
| Read Noise | 1.2 e- | 1.7 e- (typical) |
| Set Point Colling at ambiant of 20 c | -25 °C | -25°C |
| Frame Rate | 2 FPS (Full Frame image) | 4FPS (Full Frame image) |
| Mount Type | M54 x 0.75 | M54 x 0.75 |
| ADC | 16 bit | 16 bit |
| BackFocus Distance | 31mm | 31mm |
| Reading Mode | Rolling shutter | Rolling shutter |
| Exposure Range | 1 ms - 24 hours | 1 ms - 24 hours |
| Dark Current | 0.005 e-/p/s | 0.0008 e-/p/s |
| Filter Wheel (Mechanical indexing for reproductive flats) | Filterwheel for 2” or unmounted 50mm filters, 5 or 7 position | Filterwheel for 2” or unmounted 50mm/ 36mm filters |
| Accessories | Off-Axis guide unit | Off-Axis guide unit |
| Computer System Requirements | Windows 10 Linux USB 3.0 8GB Ram 64 bit Operating System. | Windows 10 Linux USB 3.0 8GB Ram 64 bit Operating System |
In the Box
Camera model :
- QSI 726 with 7 filters positions
- QSI 726 with 5 filters positions
Warranty & Manuals
Limited One Year Warranty
