Product Details
＋
SKU: LCW-5202-US

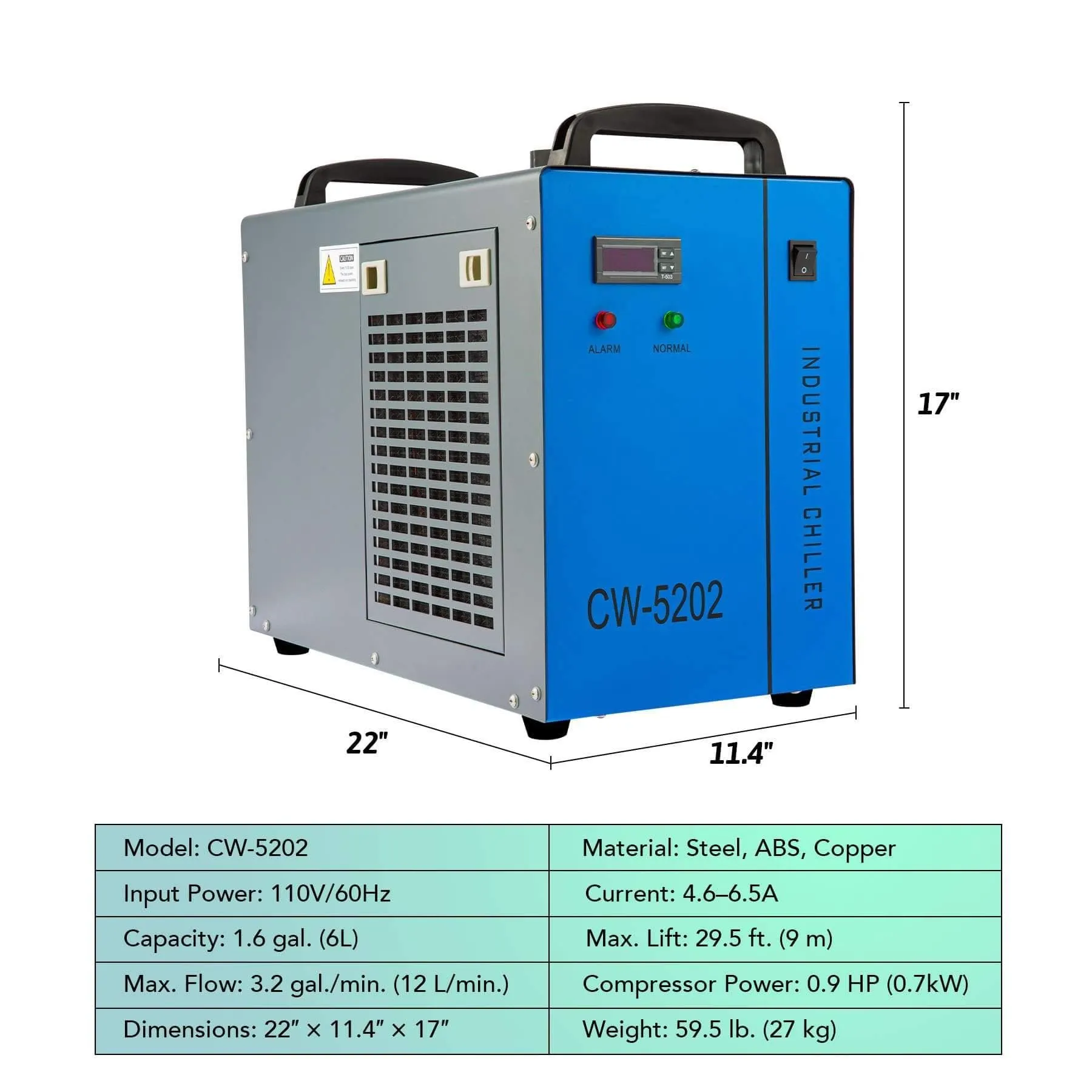

Convenient Size:
- 22” x 11.4” x 17” (56 x 29 x 43 cm) overall dimensions
- 59.5 lb. (27 kg.) overall weight
- Spacious yet compact 2.4 gallon (9 L) tank
- Cool down your machine with ease while taking up little space.
Durability and Compatibility:
- Compatible with CO2 Laser Engravers of 50W and up
- Equipped with premium brass inlet and outlet ports
- Long-term & corrosion-free performance
- Consistent water cooling extends your machine’s lifespan
- Use ONLY with distilled water
Power:
- Model: CW-5202
- Compressor Power: 0.9 HP (0.7kW)
- Input Power: 110 V / 60Hz
- Max Flow: 3.2 gal/min. (12 L/min)
- Max Lift: 29.5 ft. (9 m)
- Current: 4.6-6.5A

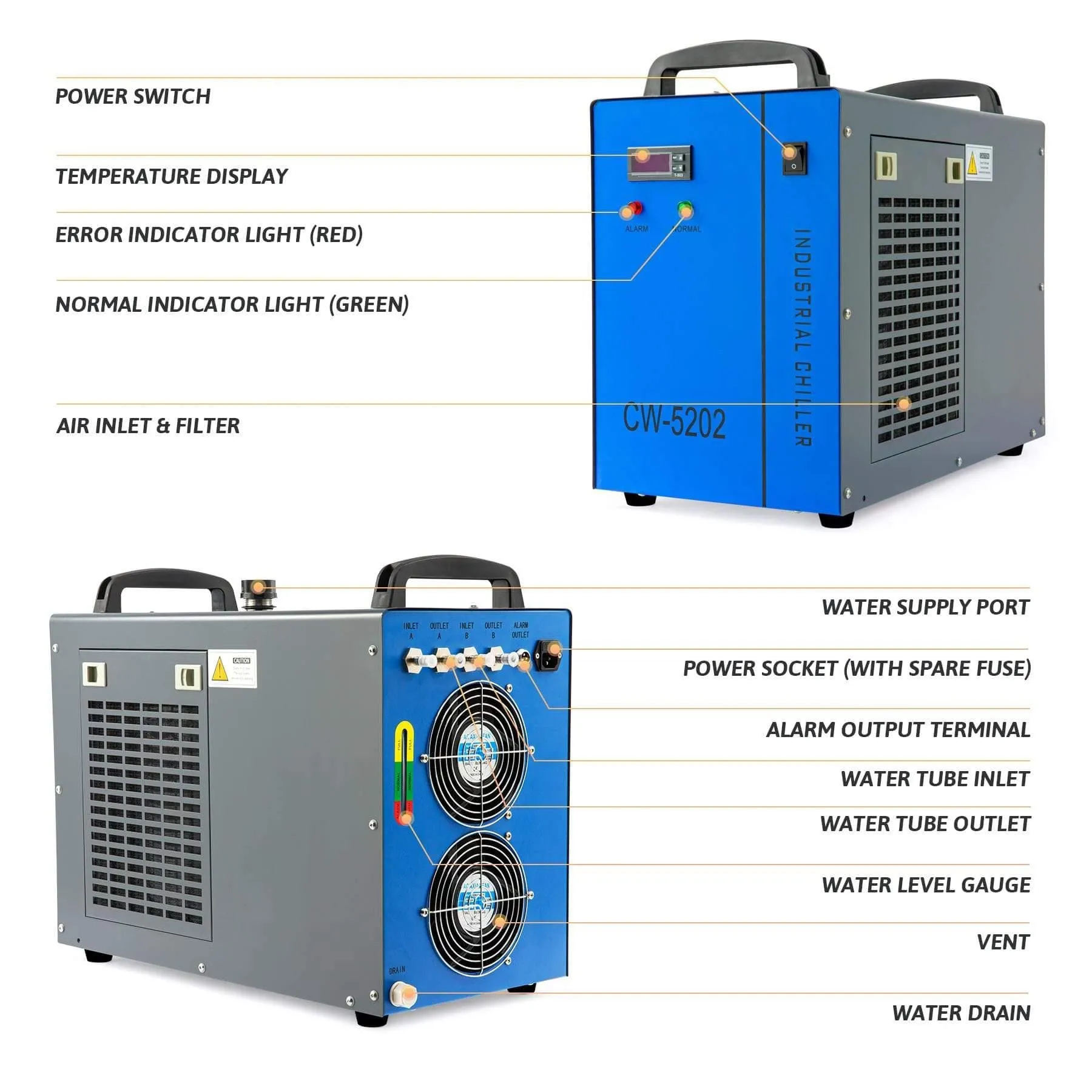

Additional Features:

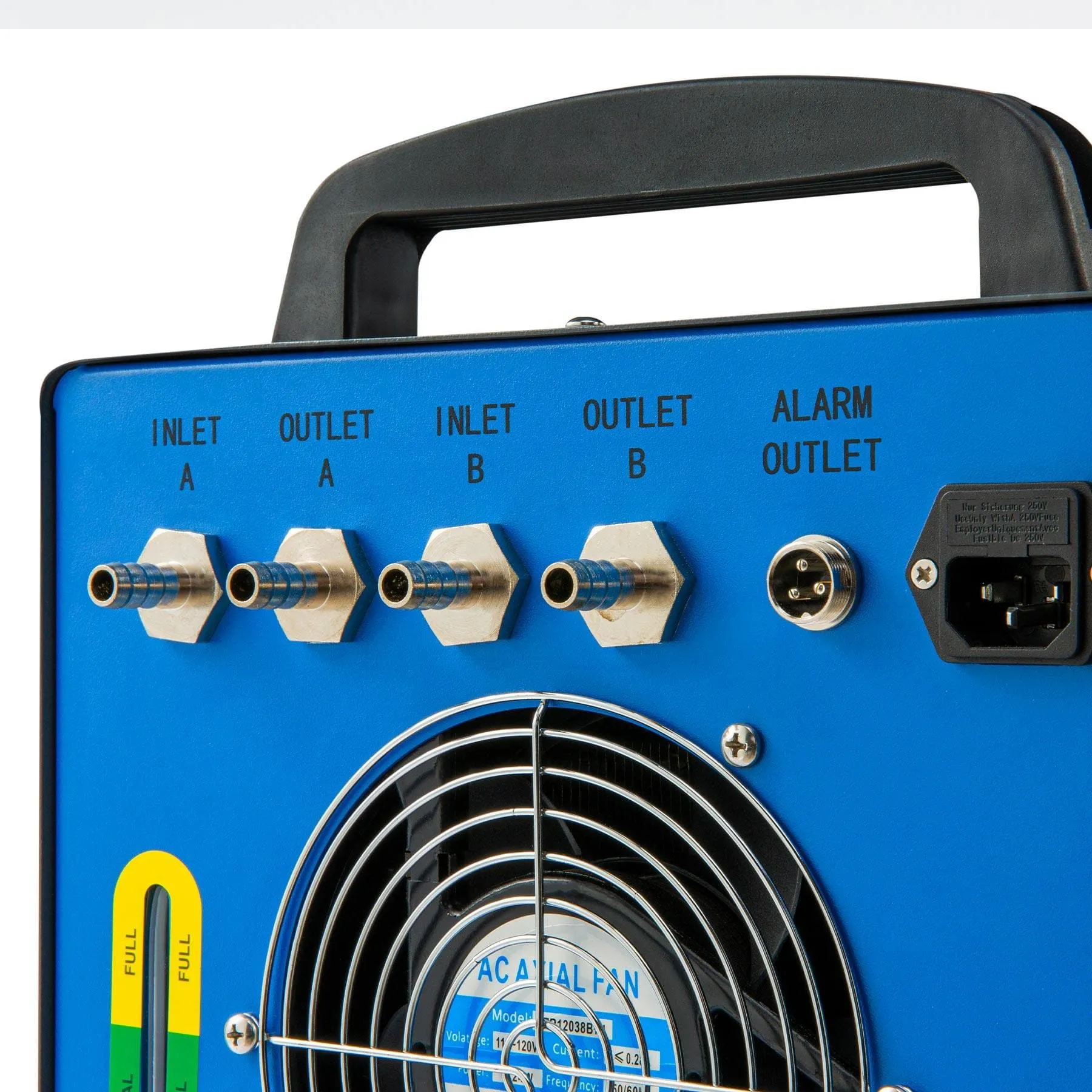

- TWO DEVICES AT ONCE: Equipped with two sets of inlet and outlet ports so you can easily cool two laser engravers at once. You can also use this chiller with one engraver by simply running a hose from the 2nd inlet to the 2nd outlet.
- DIGITAL DISPLAY: Internal sensors constantly monitor water flow and temperature, so you can work securely knowing your laser tube is safe from heat damage.
- WATER FLOW/LEVEL ALERTS: Indicator lights and built-in alarms warn you if the water level drops below the minimum threshold or if water flow stops.
- RADIATOR FAN: Reduces heat buildup for effective cooling when you need it most.
- OBSERVATION WINDOW: Monitor the chiller’s water level at a glance.
Dual Operation Modes:
- INTELLIGENT CONTROL MODE detects ambient temperatures and adjusts the water temperature accordingly.
- CONSTANT TEMP. MODE maintains water temperature in your custom temp. range.
Package Includes:
- 1 x Industrial Chiller
- 1 x Power Cord
- 1 x Alarm Signal Output Plug
- 1 x Spare Fuse
- 1 x User Manual (English)
Warranty:
- No need to worry! We offer a 1-year warranty on all water chillers.
Certifications:
- FDA Compliant
- CE Certification
- ISO9001 Quality Certification
Summary:
- Actively cool two laser tubes at once with ease and reliability! Our industrial water chillers are known for their consistency, durability, and compatibility with CO2 Laser Engraver machines 50W and up. This accessory is essential for full-time engraving professionals and hobbyists who like to work for more than 6 hours a day, as well those who work in warmer ambient temperatures above 85℉/30℃.
